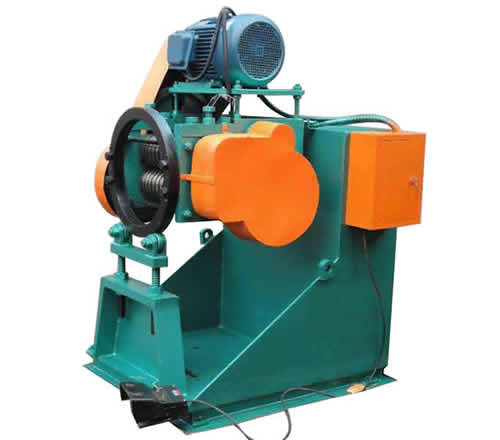

Wire Head Sharpening Machine

Main Specifications

1.Diameter of rolls.
81mm
2.Length of rolls.
140mm
3.Speed of rolls.
45.1r/mm
4.Cannelure numbers of roll.
12
5.Max.wire diameter rolled.
6.5mm
6.Min.drawing diameter.
2.5mm
7.Max.strength of wire rolled.
ab=80kgf/mm2
8.Rolling length for one pass(approx.)
85mm
9.Motor
Y100L.-4.22kw.1420rpm
10.Overall dimensions.
800×375×1210mm3
11.Total weight of equipment.(approx)
270kg
