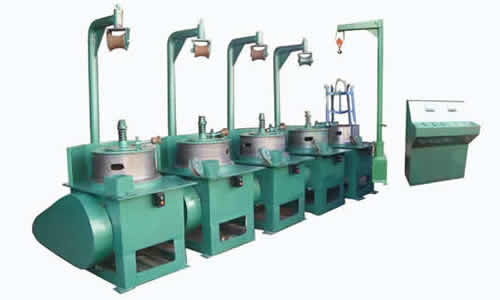

Continuous Pulley Wire Drawing Machine

Pulley wire drawing machine can be used to draw the low carbon, medium carbon, high carbon wire and also copper and aluminum wire. This type of wire drawing machine is suitable for wooden screws, electric lead, copper rope and spring industries. With the adoption of electric control, it has the features of easy operation, low noise, high efficiency.

The pulley type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of medium and thin fiber material, especially for mild steel wire, galvanized iron wire, steel head wire, stainless steel wire, rubber hose steel wire, spring steel wire, rod welding wire and copper wire aluminum rod, etc.

Scope of application: Gas-protection welding wire, welding electrode, stainless steel wire, galvanized iron wire, bullet and hard wire, copper wire, and metal product wire, etc.

Wire drawing machine for stainless steel fine wire
400 Model Four Cans Pulley Dry Type Wire Drawing Machine

Major Technical Parameter

Spe. Drawing Path Max. Incoming Wire
(mm)
Min. Finished Product
(mm)
Motor Power
(kw)
Max. Speed
(m/s)
Rotation Pattern
650 1-4 8.00 4.00 22-15 2 Gear Rotation
560 1-7 6.50 2.00 22-11 6 Gear Rotation
450 1-7 3.50 1.20 18.5-15 7 Gear Rotation
400 6-8 2.50 0.80 11-15 18 V-belt Transmission
360 1-7 2.50 0.60 11-7.5 8 Gear Rotation

Pulley drawing machine for galvanized steel wire
560 Model with Main motor, mould case, guiding wheel frame and general electrical motor control system

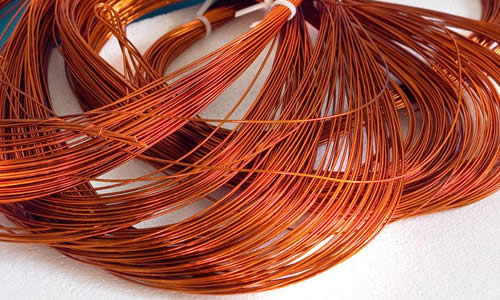

Typical Finished Products
