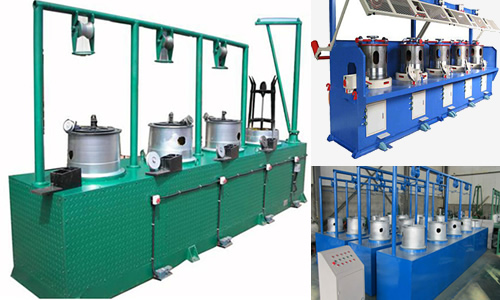

LW1600.2-6-560 Wire drawing Machine





LW1600.2-6-560 Wire drawing Machine



Main Specifications

1.Strength of wire material to be drawn.
δb≥110kgf/mm2
2.Max.diamter of feeding material.
6.5mm
3.Min.diamter of discharging material.
2.2mm
4.Passes of drawing and block Dia.
6/560
5.Max.average compression rate (approx)
30%
6.Total compression rate (approx)
78%
7.Max.velocity of full-loaded block
245m/min
8.Total power of machine proper
Y200L1-6.N=18.5KW single speed motor
n=970r/min.total power 111KW or JZTy71-4L.N=22KW variable-speed motor

n=1200r/min total power 132KW
for drawing high/medium cartoon steel or alloy wires;
9.Total weight of equipment.(approx)
1160kg

   Note:If it is required the customers.the machine can be equipped with the facilities providing eight passes. nine passes and ten passes Max velocity of the full-loaded block can reach as high as 450m/min For drawing high-carboon steel wire motor JZTy72-4L N=30kw is required.
