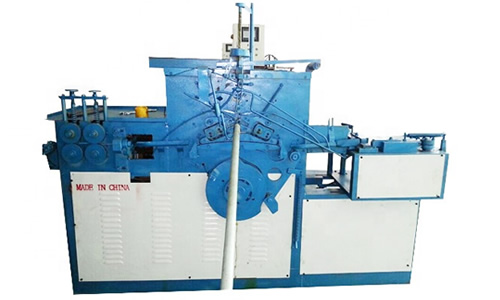

Wire Hanger Machine


Technical Specifications

Model

QK-2

Process Length Rating

13”, 14”, 15”, 16”, 18”

Capacity

1650 – 2000pcs/hr.

Material

Galvanized Steel Wire or Bright Steel Wire
Wire size range: Ø1.8mm – Ø2.8mm

Motor power

2.2KW (380V, 50Hz, 3-phase)

Hanger Size Range

13” – 15” and 16” –18”

Hanger structure

To the basic types or as per the user’s samples

Overall dimensions

1950 x 800 x 1550 (mm)

Features:
- Automatic hanger fabrication with higher capacity.
- Automatic detecting sensor for emergency stop
- Easy operation and simple maintenance
- Durable dies and lower operation cost
