Products

We supply drawing machine of wire used for hexagonal mesh weaving, wire coiling machine, weaving machine. We also supply bobbin winding machine and other spare parts.

Wire Drawing Machine for Hexagonal Netting Production

We supply to Egypt factories with following drawing machines:

Technical data:
Application: Hexagonal Wire Netting Machine for the manufacture of Hexagonal Nettings with wide meshes made of heavy wire gauge. (max. 3.1 mm). The machine can be used for processing both black and bright annealed wires or galvanized wires.

Working range: Total netting width: 3m
Mesh Widths: 3-4"
Max. wire diameter: 3.1mm
Number of twists: 2-3
Diameter of winding-up tube: 150mm
Max. diameter of netting rolls: 900mm

Procedure: Fully automatic - The wires used for forming the mesh are in part pulled by the netting drum foom spools, or from wire rolls inside the netting tubes.

Wire Coiling Machine

Wires to be coiled into form of coils to be used as weft wires, for purpose of producing hexagonal mesh.
NO. of coiling spindles: 4
Dia. of coiling shaft: 10,12,16 mm
Suitable for wire diameters: 0.38-0.90 mm
Total Weight: 350 kg
Power Required: 1.5 KW

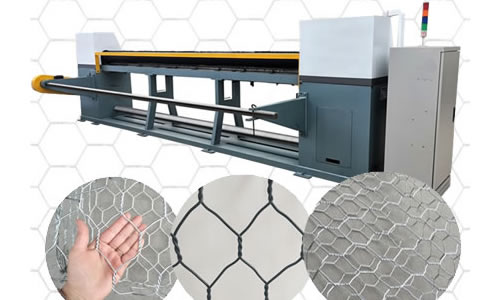

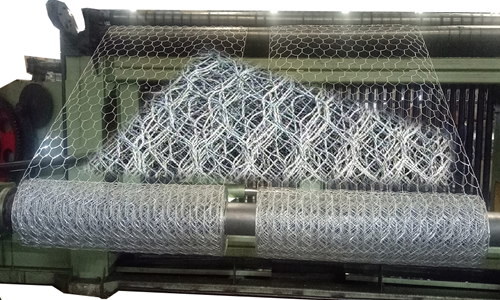

Hexagonal Net Weaving Machine

The machine is designed to produce hexagonal meshes for gabions, chicken wire and other applications. The machines of this series are of horizontal design, ensuring smooth running and high productivity.

The machine technical data:

Mesh size(mm) to produce	Max roll width(mm)	Max wire diameter(mm) applied	Capacity (kw)	Weaving speed (m/hour)	Measurement (mm)	Weight (T)
60x80	2400	3.2	15	165	5200*1400*2400	13.5
	3300	3.2	18		6200*1400*2400	15
	4300	3	22		7200*1400*2400	16
80x100	2400	3.2	15	200	5200*1400*2400	13.5
	3300	3.2	18		6200*1400*2400	15
	4300	3	22		7200*1400*2400	15.5
100x120	2400	3.2	15	220	5200*1400*2400	13.5
	3300	2.8	18		6200*1400*2400	16
	4300	2.8	22		7200*1400*2400	15.5
120x150	2400	3.2	15	230	5200*1400*2400	13.5
	3300	2.8	18		6200*1400*2400	15

Above production line can be used to make following hexagonal mesh products:

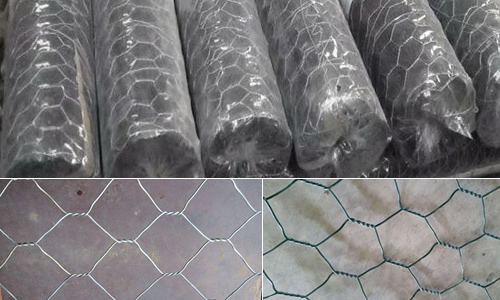

General Specification of Galvanized Hexagonal Wire Netting
Mesh			Min. Galv. G/SQ.M	Width	Wire Gauge (Diameter) BWG
Inch	mm	Tolerance(mm)
3/8"	10mm	± 1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	± 1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	± 2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	± 3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	± 3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	± 4.0	0.9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	± 5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	± 6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	± 7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	± 8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	± 8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16
