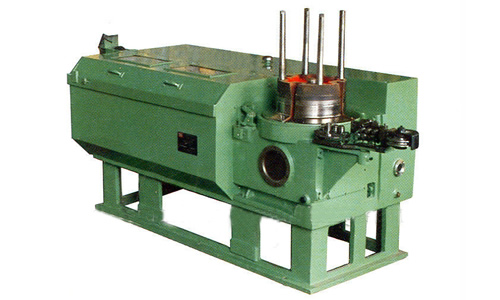

LT400.2-15~17-350 Wire Drawing Machine



Main Specifications

1.Strength of material to be drawn.
δb≥85-110kgf/mm2
2.Max.diamter of feeding material.
2.6mm
3.Min.diamter of discharging material.
0.6mm
4.Passes of drawing and diameter of drawing block for finished products.
12 to 17/350
5.Average partial ampression rate(approx.).
17.75%
6.Total compression rate.(approx)
94.67%
7.Max.rate of take-up block
500m/min
8.Cooling and lubricating ways
boshing internal and external circulation
9.Motor power of machine proper
YCT315-4Bto355-4B N=45to75KW n=1320r/min
10.Total weight of equipment.(approx)
3856kg
