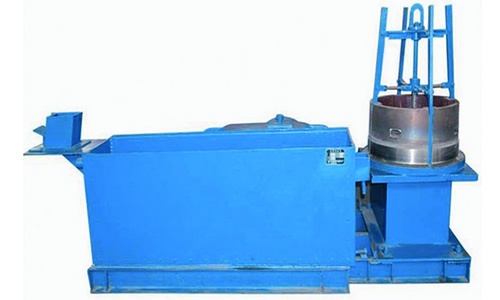

LT650.2-9-550 WATER TYPE WIRE DRAWING MACHINE





Main Specifications

1.Diamer of Rollcylinder
450mm
2.Drawing channels
13time
3.Maximum feed wire diameter
4.2mm
4.Maximum discharge diameter
0.8mm
5.Total compression rate
86%
6.Average partial compression rate
15.2%
7.Drawing line speed of endproduct
4.4m/s
8.Power of motor
90KW
9.Dimension of contour
4500×2800×1500
10.Weight
11000kg
