We supply OTO Type Wire Drawing Machine, complete with blocker, coiler, die, motor, wire pointing machine, micro welding machine, pay off stand, bundle binder.

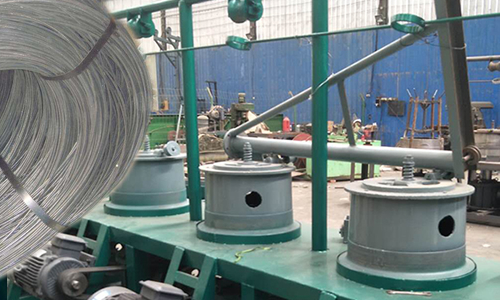

Overhead Take-Off Type Wire Drawing Machines for Drawing of Low Carbon Steel Wire

Main reducer motor, mould case, guiding wheel frame and general electrical motor control system

Complete with the following features :

Model500: OTO Type Wire Drawing Machine
No. of blocks: 8
No. of drafts :8
Block dia: 550mm
Material to be drawn: Low Carbon Steel Wire Rod
Inlet wire size: 8mm max.
Finished wire size : 2.5mm min.

A.R./draft:20 - 25%
Capstan
Construction: Graded cast iron precision machined drawing surface metallised and ground.
Hardness:57-58 RC
Cooling: Block internally water cooled at pressure.

Die:Water cooled.
Die box:Adjustable for proper cast and helix
Gear box:Fabricated from Mild steel and precision machined.
Gear:Worm reduction type.
Guard :Provided.
Bearings:Heavy duty, ball and taper roller bearings of standard make
Lubrication:Splash lubrication.
Coil stripper:Provided with last block.

Dead block coiler:

casting disc diameter :550mm
applicable wire: low carbon steel wire
wire range:3.5mm to 1.6mm
speed:synchronous with wire drawing machine.
construction of two piece construction - the upper section providing the mounting for the horizontal block shaft. the lower section of a heavy a heavy fabricated steel structure. the machines are built with standard components.

Fabricated from Mild Steel and precision machined.
Frame:The two piece frame is built in a sturdy welded box type construction of tested material.
Block:Double flanged type on horizontal axis with wear resistance wire line surface. Fitted externally with fabricated swan neck extension for holding against former.
Rotor:Of solid steel plate construction provided a mounting for the pinch pass die holder, guide pulleys and 5 roll diameter and 5 roll helix casting rolls. The complete rotor plate assembly is dynamically balanced to ensure smooth, vibration free operation.
Guard :All transmission and moving components are fully enclosed. Unloading Depression of a push button operates a jack to raise the trunk and hold coil accumulation as the block continues to draw. With the trunk in its raised position to complete coil can be removed, any empty former placed in position, and the jack retracted for further coil formation.
Transmission:Through v-belt pulleys dynamically balanced.

Electric motors:
40 H.P Motor: one
30 H.P. Motor: seven
20 H.P. Motor: one
1728 RPM, Sq. cage induction type, 3 Phase, 415 Volts, 60 H/z., A.C. Supply Electric motor.

Electrical control panel:

An aesthetically shaped, dust proof cabinet contains electrical sub-units of a standard make to provide smooth and reliable control of Wire Drawing Equipment. It houses the necessary switch gear e.g. fuses, over load relay, main & auxiliary contactor, push button, foot pedal inching for ease of threading etc.

Accessories :
Wire Pointing Machine.(8mm to 1.8mm): one
Butt Welding Machine: one
Flipper Pay off stand: one
Bundle Binder: one
A set of EIGHT blocker, vertical head, single deck, single die

Blocks: 8
Drafts: 8
Block diameter: 400mm
Material to be drawn Low Carbon Steel Wire
Inlet wire size 2.6 mm max.
Finished wire size 1 mm min.
A.R./draft 20 - 25%

Capstan:
Construction Graded cast iron precision machined drawing surface metallised and ground.
Hardness 57-58 RC
Cooling Block internally water cooled at pressure.

Die Water cooled.
Die box Adjustable for proper cast and helix
Gear box Fabricated from Mild steel and precision machined.
Gear Worm reduction type.
Guard Provided.
Bearings Heavy duty, ball and taper roller bearings of standard make
Lubrication Splash lubrication.
Coil stripper Provided with last block.

Electric motors :
all motors (8 nos.) 10 h.p., 1728 rpm, sq. cage induction type, 3 phase, 415 volts, 60 h/z., a.c. supply electric motor.

Electrical control panel:
an aesthetically shaped, dust proof cabinet contains electrical sub-units of a standard make to provide smooth and reliable control of wire drawing equipment. it houses the necessary switch gear e.g. fuses, over load relay, main & auxiliary contactor, push button, foot pedal inching for ease of threading etc.
accessories :
wire pointing machine (3mm to 1mm): one
micro welding machine: one
pay off stand: one
bundle binder: one

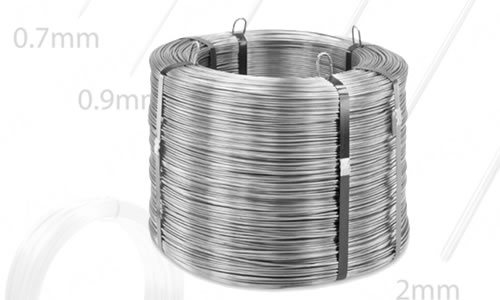

Typical Finished Products:

OTO Type Wire Drawing Machine is used with galvanizing line to produce quality galvanized wires.
